Description

Full Product Specification

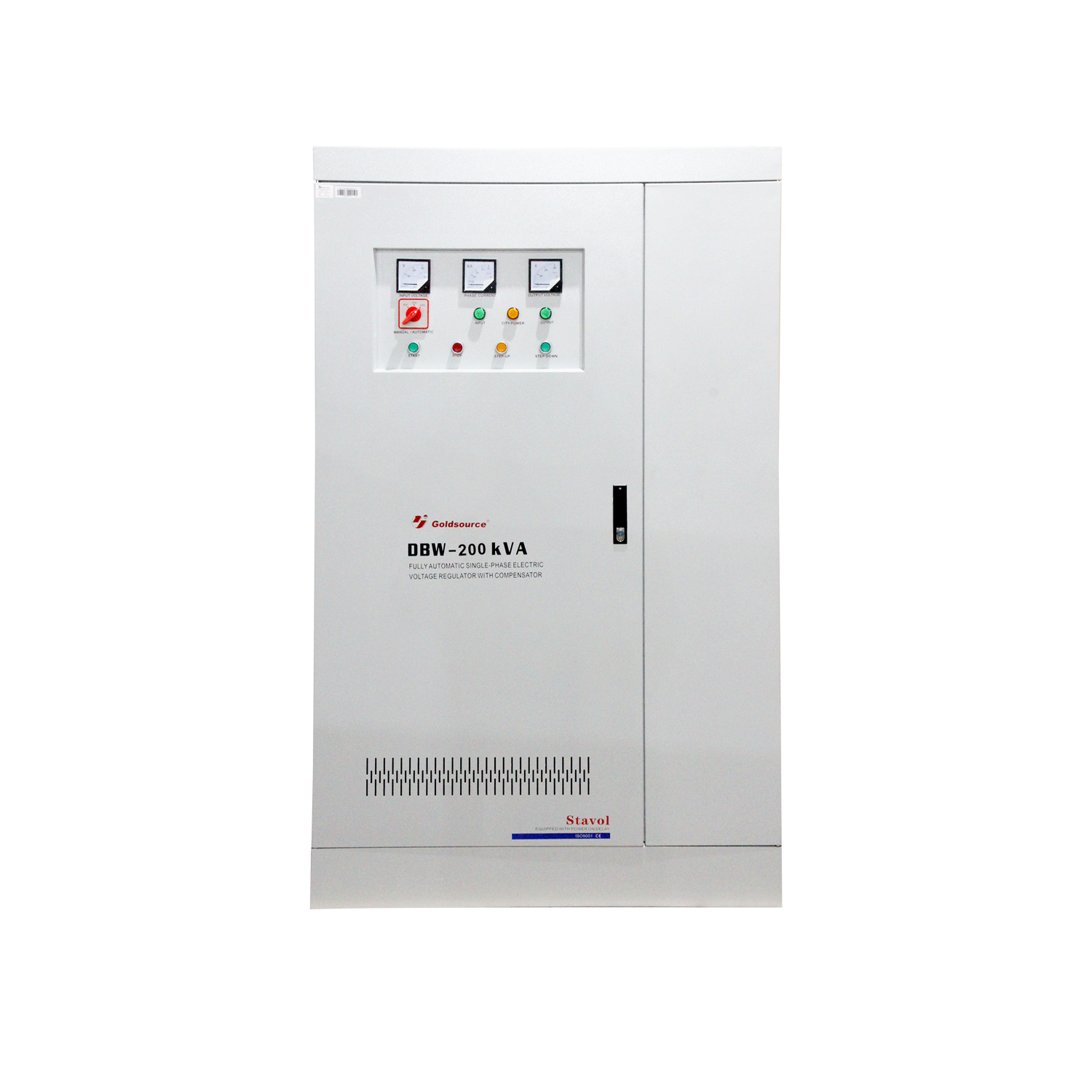

• Model: DBW-200KVA-N
• Type: Mechanical Dry Type Automatic Voltage Regulator (AVR)
• Control Mechanism: Mechanical Servo with Pulley and Chain
• Rated Capacity: 200KVA (200,000 VA)
• Input Voltage Range: 140V – 260V AC (Max 270V)
• Output Voltage: 220V AC ± Stable
• Frequency: 60Hz
• Built-In Protection:
  400A Electrical Circuit Breaker (Heavy-Duty)
  Built-in Dual Power Board
  Manual By-Pass Switch
• Transformer Type: Compact Winding Transformer (Dry-Type)
• Phase: Single-Phase

Key Features & Attributes

• Mechanical Servo Regulation with Pulley Chain: Traditional servo design for precise voltage control and long-term reliability.
• Dry-Type Compact Transformer: Environmentally safe, low maintenance, and excellent thermal performance.
• Wide Input Voltage Range (140–260V): Capable of stabilizing fluctuating or weak utility power.
• Dual Power Board: Improves operational stability and system redundancy.
• 400A Circuit Breaker: Industrial-grade protection for high-load capacity applications.
• Manual By-Pass Feature: Ensures continuous power delivery during AVR maintenance or emergency scenarios.
• Heavy-Duty Construction: Built for industrial-grade performance and long-term operation.

Performance

• High-Capacity Regulation: Handles heavy loads up to 200KVA with stable voltage output.
• Quick Servo Response: Mechanical system ensures timely adjustment to voltage variations.
• Silent and Efficient: Dry-type transformer and pulley system reduce noise and minimize mechanical failure risks.
• Continuous Duty: Designed to operate 24/7 under industrial and commercial load demands.
• Stable 220V Output: Maintains voltage precision for sensitive and high-powered equipment.

Application

• Industrial Plants & Manufacturing Lines
• High-Powered HVAC Systems and Motors
• Large Office Buildings or Data Centers
• Medical Facilities & Diagnostic Equipment
• Educational and Institutional Facilities
• Warehouses & Cold Storage Units
• Commercial Buildings with Sensitive Electrical Equipment

Safety Features

• 400A Circuit Breaker: Provides overload and short-circuit protection.
• Bypass System: Ensures uninterruptible operation during servicing.
• Fully Insulated Components: Prevents electric shocks and heat-related failures.
• Dry-Type Transformer: No risk of oil leaks, safer for enclosed or flammable environments.
• Chain-Driven Servo System: Mechanically failsafe and easy to service.
• Built-in Protection Circuitry: Stabilizes output under rapid input changes.

Benefits

• Protects Expensive Equipment: Regulated voltage helps avoid overvoltage and undervoltage damage.
• Reduces Downtime & Maintenance Costs: Durable construction with low servicing needs.
• Ensures Operational Stability: Keeps machines running smoothly despite utility fluctuations.
• Adaptable to Harsh Grid Conditions: Wide input voltage tolerance makes it suitable for rural or unstable networks.
• High Safety and Reliability: Built for critical systems that require continuous, clean power.
• Cost-Efficient Power Regulation: Prevents energy losses and equipment wear.

Why Choose Goldsource Mechanical Dry Type AVR Single-Phase DBW-200KVA-N?

• Industrial-Grade Capacity (200KVA) – Handles high-load operations with ease.
• Pure Mechanical Servo with Chain Drive – Proven technology for long-term stability.
• Dry-Type Transformer Design – Safe, silent, and low-maintenance.
• Integrated Safety System with 400A Breaker & Dual Power Board – Built to protect.
• Reliable Output with Wide Input Tolerance – Keeps your equipment powered, protected, and productive.
