GENERAL DESCRIPTION

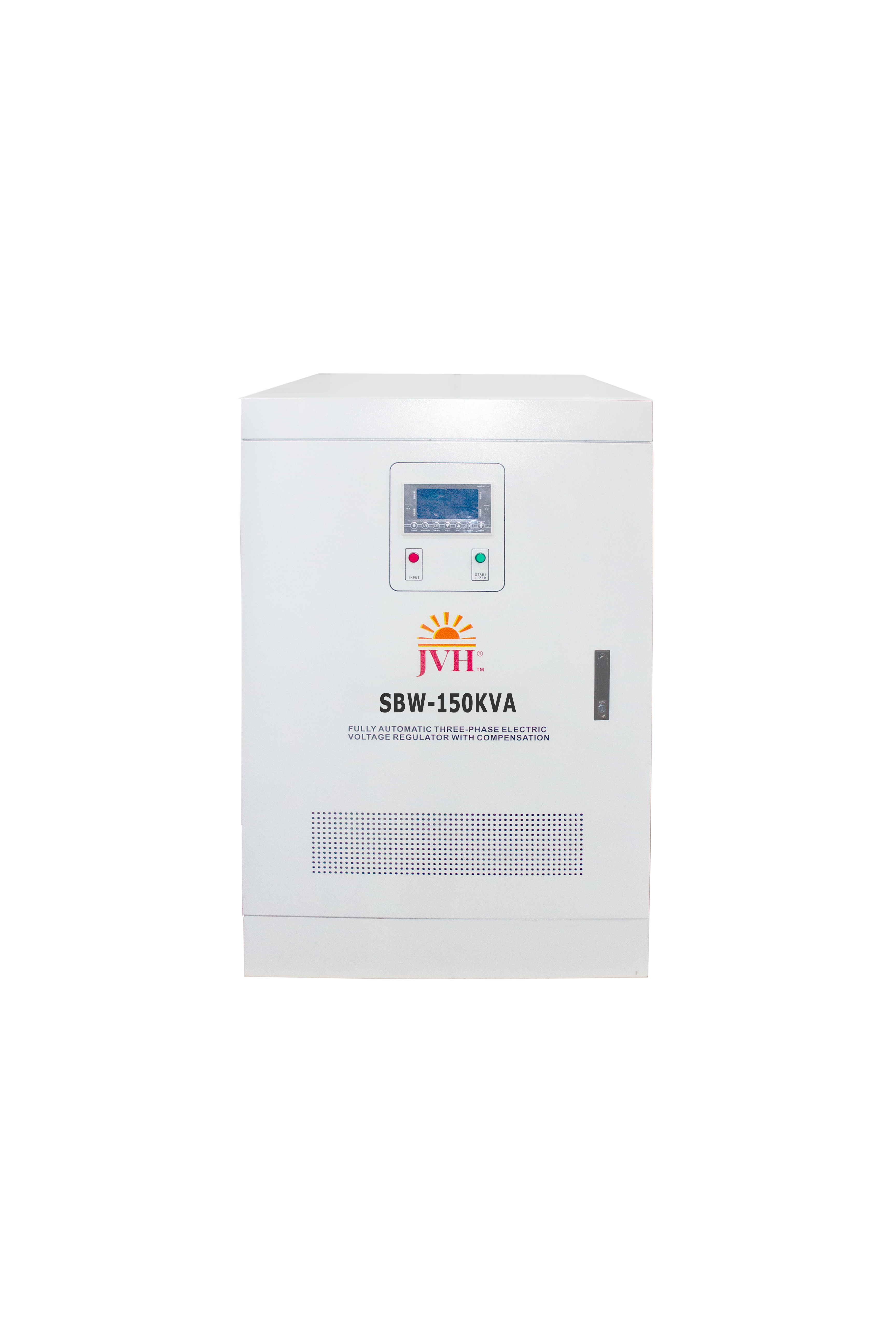

The JVH SBW-150KVA-J Automatic Voltage Regulator (AVR) is a high-capacity voltage stabilization solution designed to deliver stable and accurate 220V AC output for heavy-duty industrial and commercial power systems.

Equipped with a digital control circuit board and a mechanical servo-type regulator, this AVR ensures fast voltage correction and dependable performance across a wide input voltage range. The unit features a main dry-type transformer, automatic power-on delay, and an integrated by-pass system, allowing continuous operation during maintenance while protecting sensitive equipment from power disturbances. The AVR supports both automatic and manual output voltage control for maximum operational flexibility.

FULL PRODUCT FEATURES

Electrical Specifications

• Capacity: 150KVA
• Frequency: 60Hz

Voltage Ratings

• Operating Range: 160V – 250V
• Input Voltage Range: 160V – 260V
• Output Voltage: 220V AC (Auto / Manual Mode)

Control & Regulation

• Digital control circuit board for precise voltage sensing
• Mechanical (servo motor type) voltage regulation system
• Manual output voltage adjuster for fine voltage calibration
• Automatic power-on delay to protect connected equipment during startup

Protection & Safety

• High and low voltage protection
• Power-on breaker with 630 Amp capacity
• Reliable operation under heavy load and fluctuating voltage conditions

Construction & Reliability

• Main dry-type transformer for durability and low maintenance

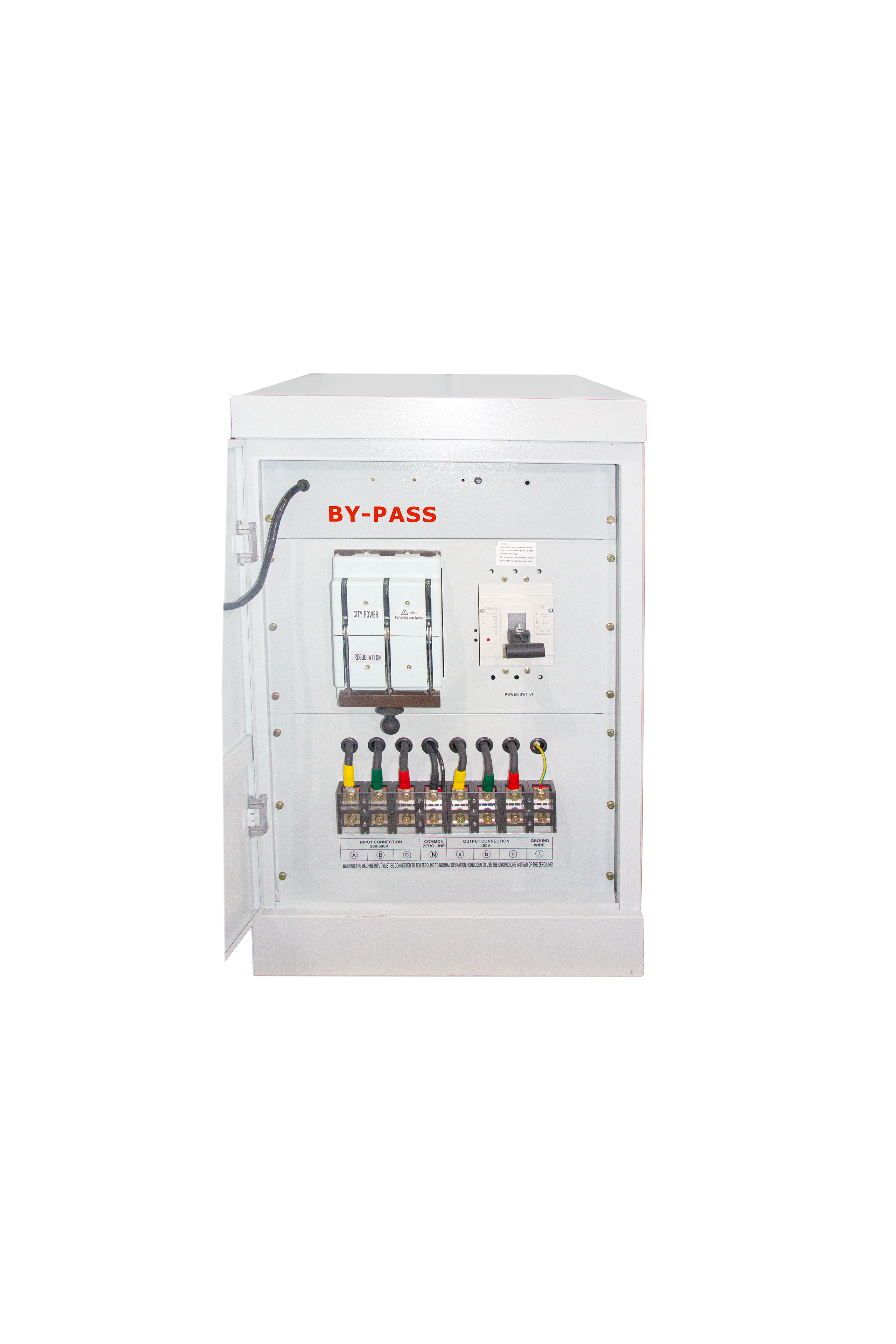

• Built-in by-pass switch for uninterrupted power during AVR servicing
• Heavy-duty industrial-grade enclosure for continuous operation

APPLICATIONS

The JVH SBW-150KVA-J AVR is ideal for high-load and power-sensitive installations such as:

• Large industrial machinery and manufacturing plants
• Commercial buildings and office complexes
• Hospitals and medical facilities
• Data centers and telecommunications systems
• Hotels, malls, and convention centers
• Heavy electrical and motor-driven equipment

Brand

JVH AVR
