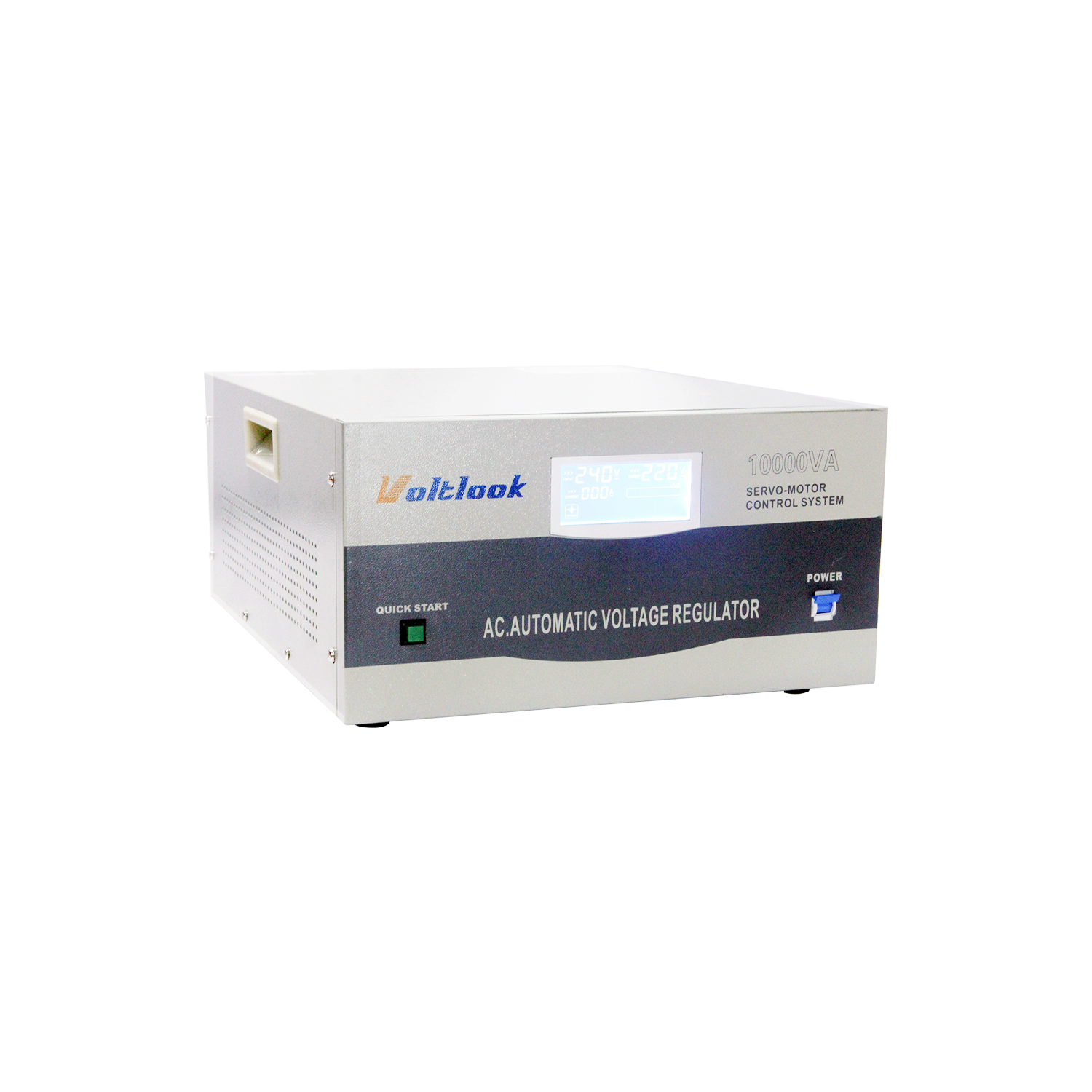

Description

• Capacity: 10,000VA
• Phase: Single Phase
• Control Type: Servo Motor
• Frequency: 50Hz / 60Hz
• Input Voltage Range: 100V – 250V AC
• Output Voltage: 220V and 110V
• Power Factor: 0.8
• Protection Features:
  – High Voltage Protection
  – Low Voltage Protection
  – Short-Circuit Protection
  – Overload Protection
• Wire Material: Variac Copper + Boost Aluminium
• Display: LCD Digital with Time Delay
• Time Delay Function for equipment safety

Key Features & Attributes:

• Wide Input Range: Stable operation even during fluctuating voltage from 100V to 250V
• LCD Digital Display: Real-time monitoring of input/output voltage, protection status, and operational indicators
• Dual Output Options: 220V and 110V – suitable for both local and imported appliances
• Advanced Protection: Equipped with
  • High Voltage Protection
  • Low Voltage Protection
  • Overload & Short-Circuit Protection
  • Time Delay Circuit for safe power-up
• High-Quality Wiring: Copper variac for durability and efficient regulation; aluminium boost coil for cost-effective enhancement
• Servo Motor Technology: Ensures precise and stable voltage regulation

Additional information

Brand

VOLTLOOK
