Description

FULL PRODUCT FEATURES

• Model: SVC-D50KVA-B
• Capacity: 50,000VA (50KVA)
• Input Voltage: 100V – 250V AC
• Output Voltage: 220V AC
• Frequency: 50Hz / 60Hz
• With Manual By-Pass Function – Allows direct power line connection during maintenance or emergency operation
• Digital Indicator Display – Real-time monitoring of input voltage, output voltage, and system status
• Delay Switch (1 Pc)
  • Short Delay: 6 Seconds
  • Long Delay: 180 Seconds
• Servo Motor Controlled Voltage Regulation – Accurate and smooth voltage correction
• Pure Copper Transformer Winding – High efficiency, better conductivity, and extended service life
• Fully Molded Insulator Main Transformer (2 Pcs) – Enhanced insulation and operational safety
• Magnetic Contactor (1 Pc) – Reliable switching and overload protection
• Terminal Block (AC Input / Output) – Secure and stable wiring connections
• Low Power Consumption – Energy-efficient performance
• Built-in Surge Protection – Protects connected equipment from voltage spikes and fluctuations

GENERAL DESCRIPTION

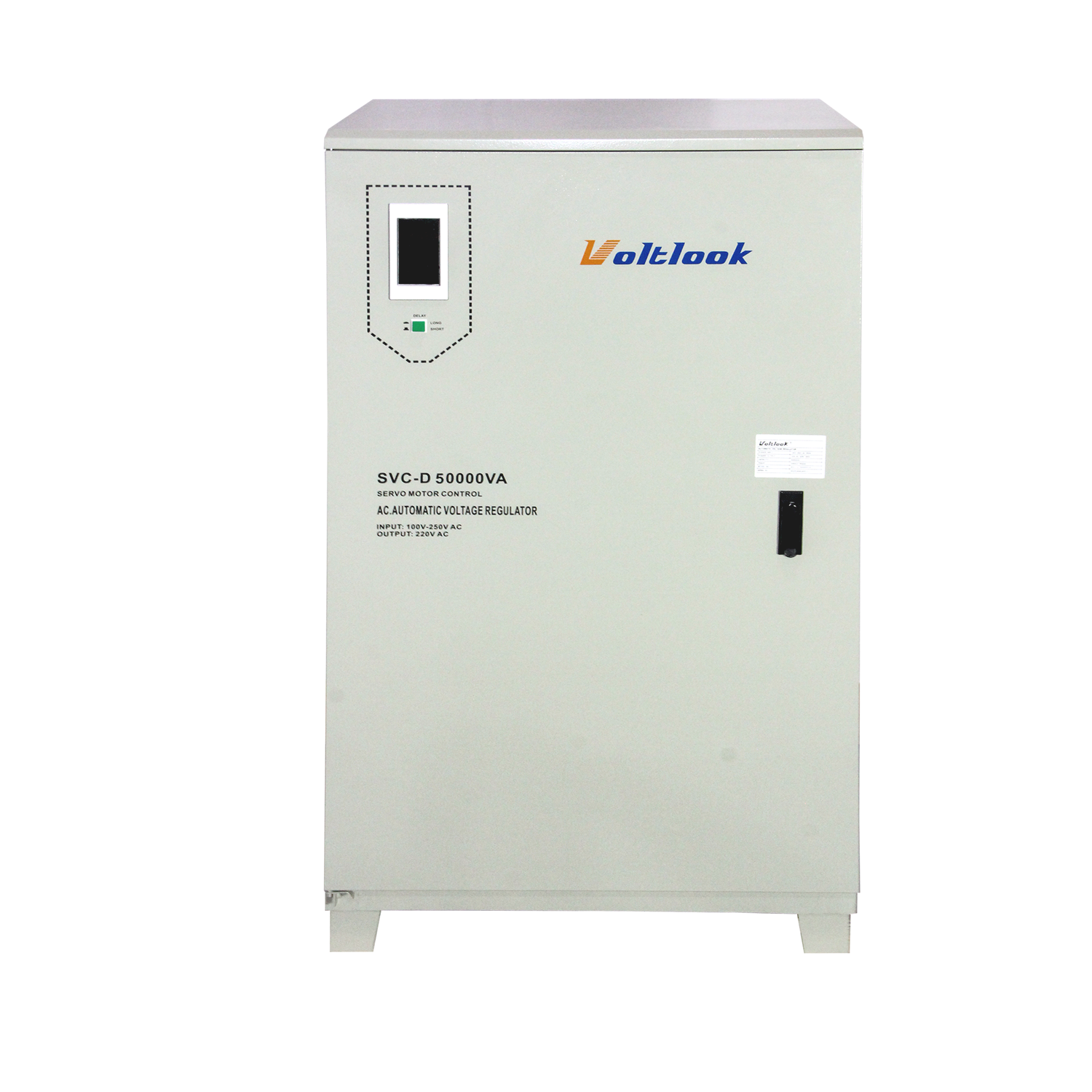

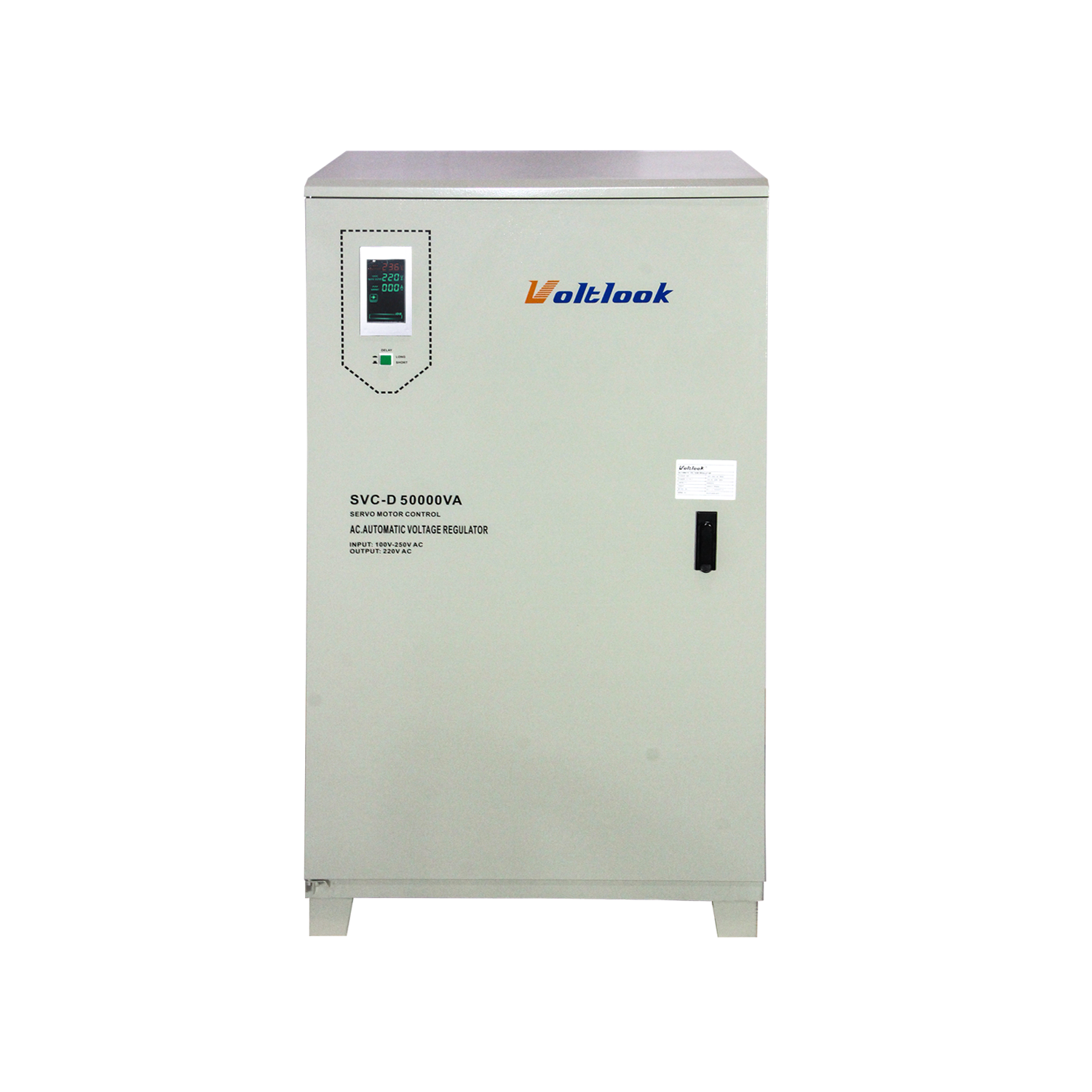

The VOLTLOOK Digital AVR 50,000VA with By-Pass (SVC-D50KVA-B) is a heavy-duty automatic voltage regulator designed to deliver a stable 220V AC output even when input voltage fluctuates between 100V and 250V AC.

Equipped with a servo motor control system and pure copper transformer windings, this AVR ensures precise voltage regulation, durability, and reliable long-term operation. The digital indicator display provides clear and accurate voltage readings, allowing users to monitor performance easily.

The built-in delay protection system (6-second short delay and 180-second long delay) safeguards sensitive equipment from sudden voltage restoration and power surges. The manual by-pass feature allows continuous operation by directly connecting the load to the main power source during maintenance.

Designed for demanding commercial and industrial environments, this 50KVA AVR provides dependable voltage stabilization and enhanced equipment protection.

APPLICATION

The VOLTLOOK 50KVA Digital AVR is ideal for:

• Industrial machines and manufacturing equipment
• Commercial buildings and establishments
• Large offices and business centers
• Hospitals and medical facilities
• Data centers and server rooms
• Elevators and motor-driven systems
• Large air-conditioning and refrigeration units

Recommended for locations with unstable or fluctuating power supply, ensuring stable voltage output, improved equipment lifespan, and reduced electrical damage risk.

Brand

VOLTLOOK
