Product Overview:

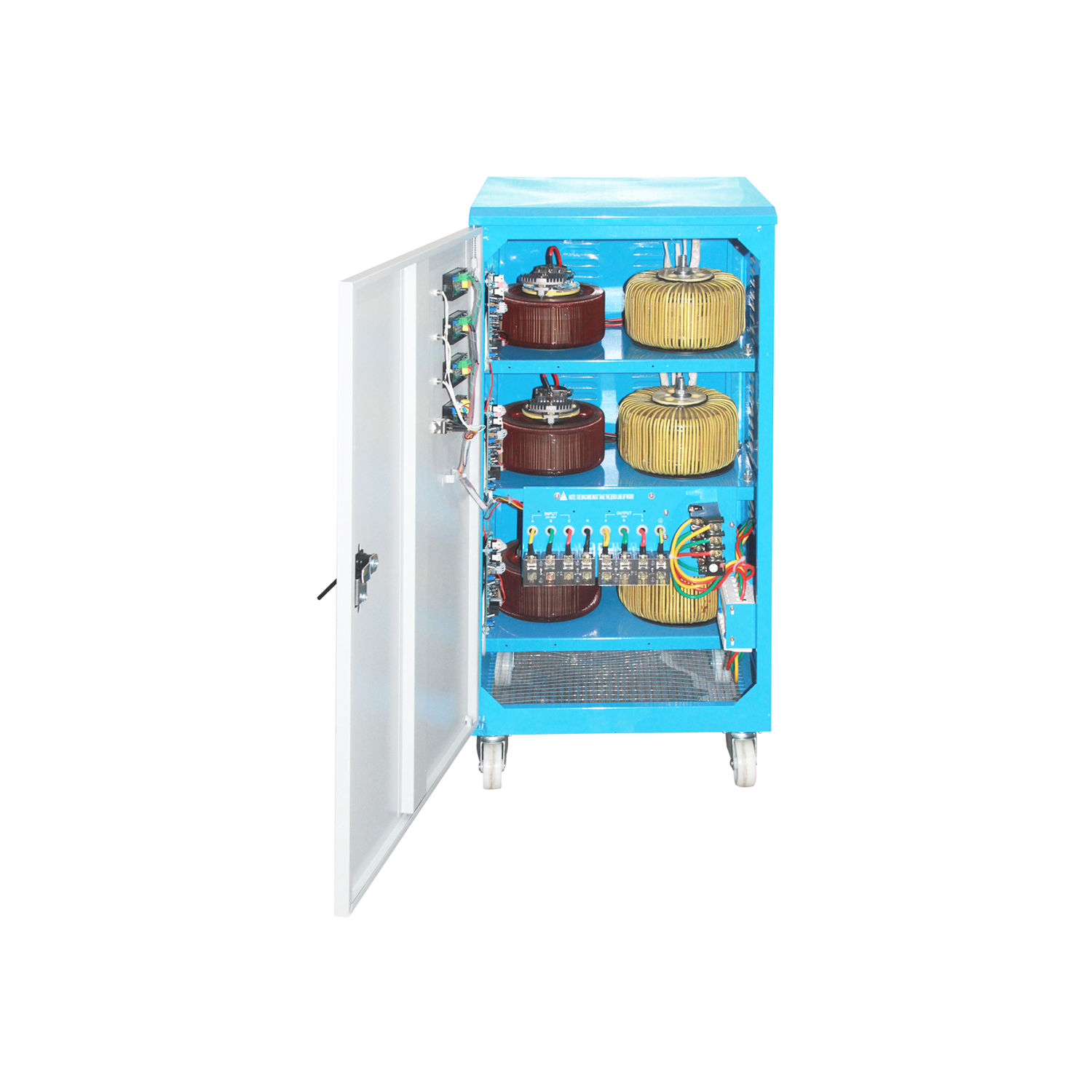

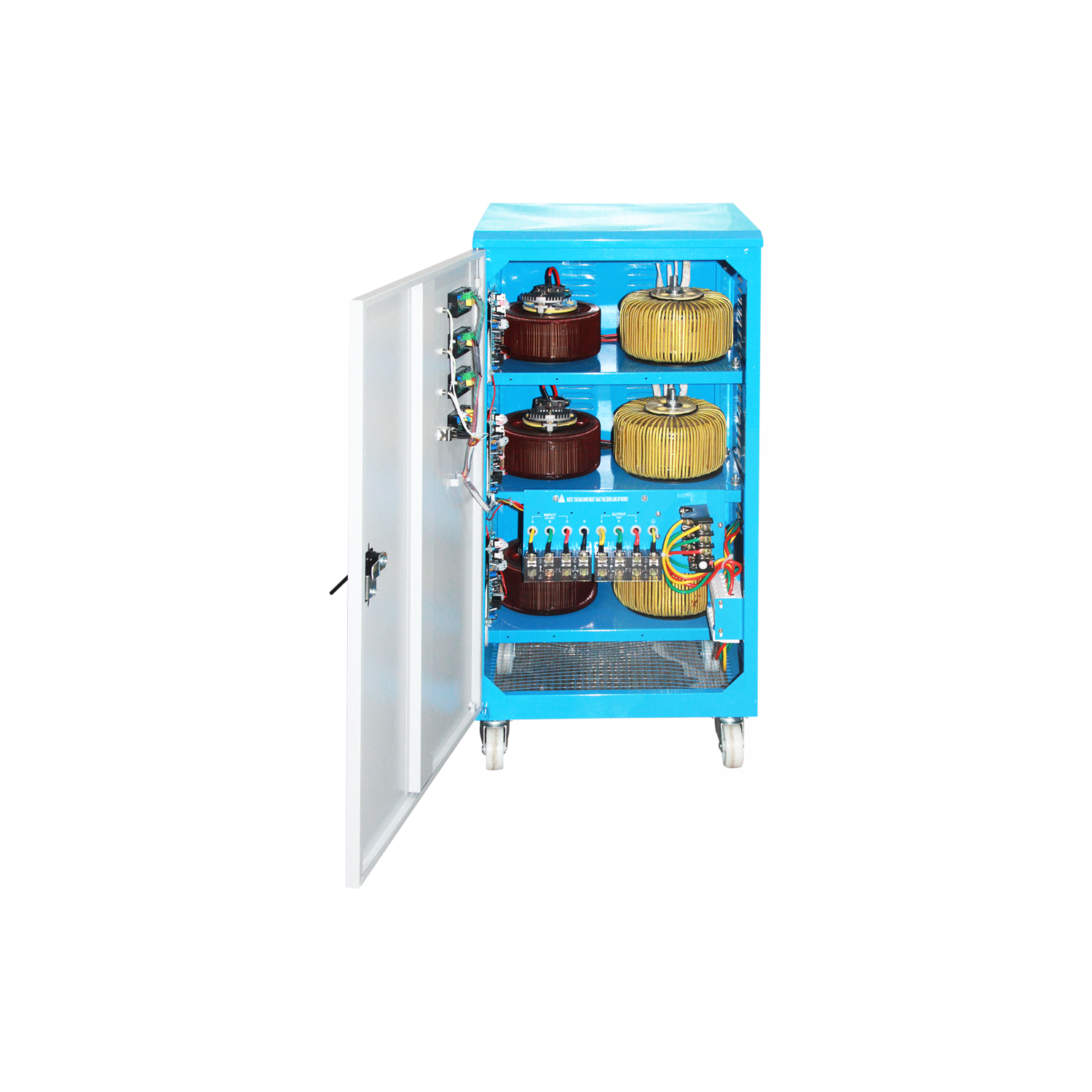

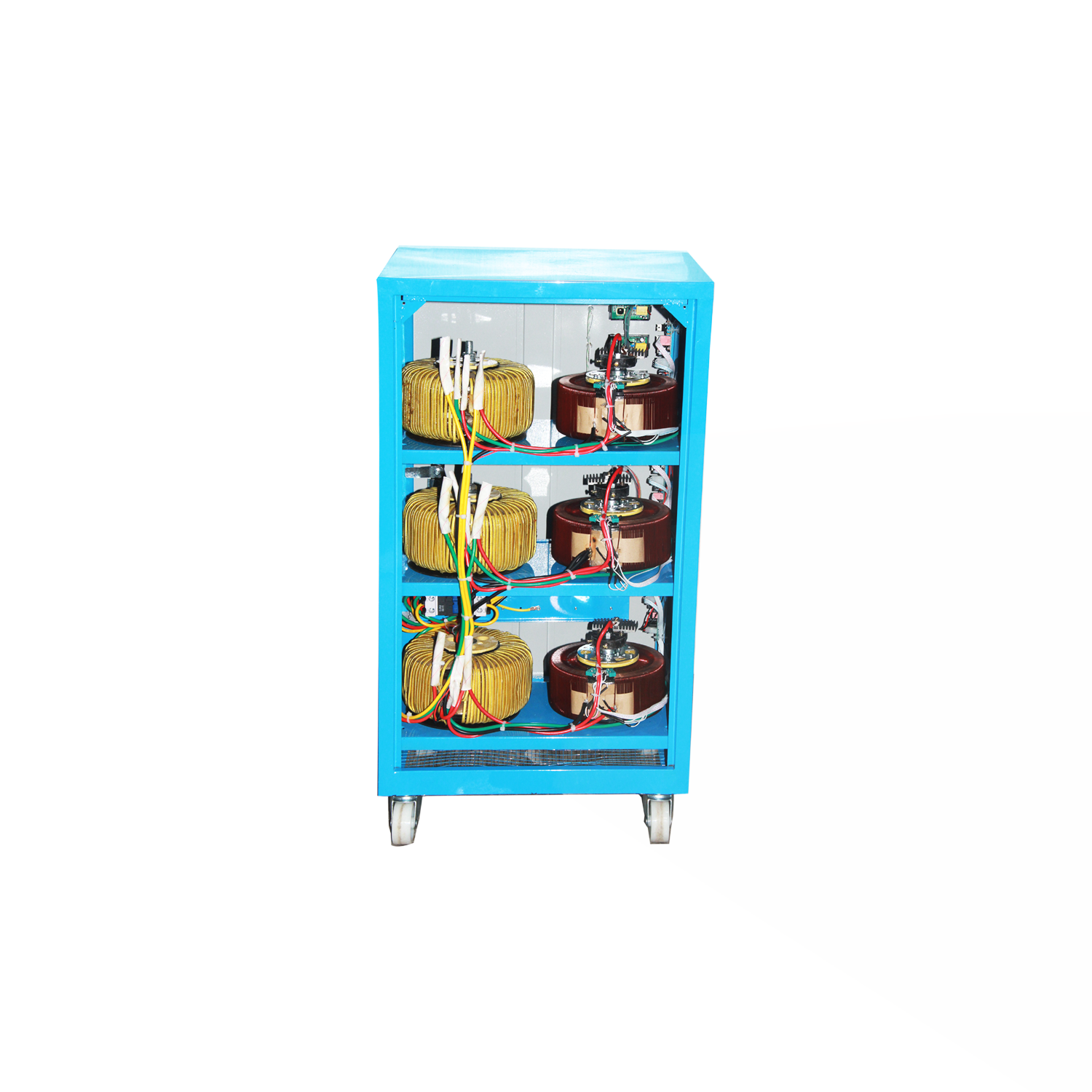

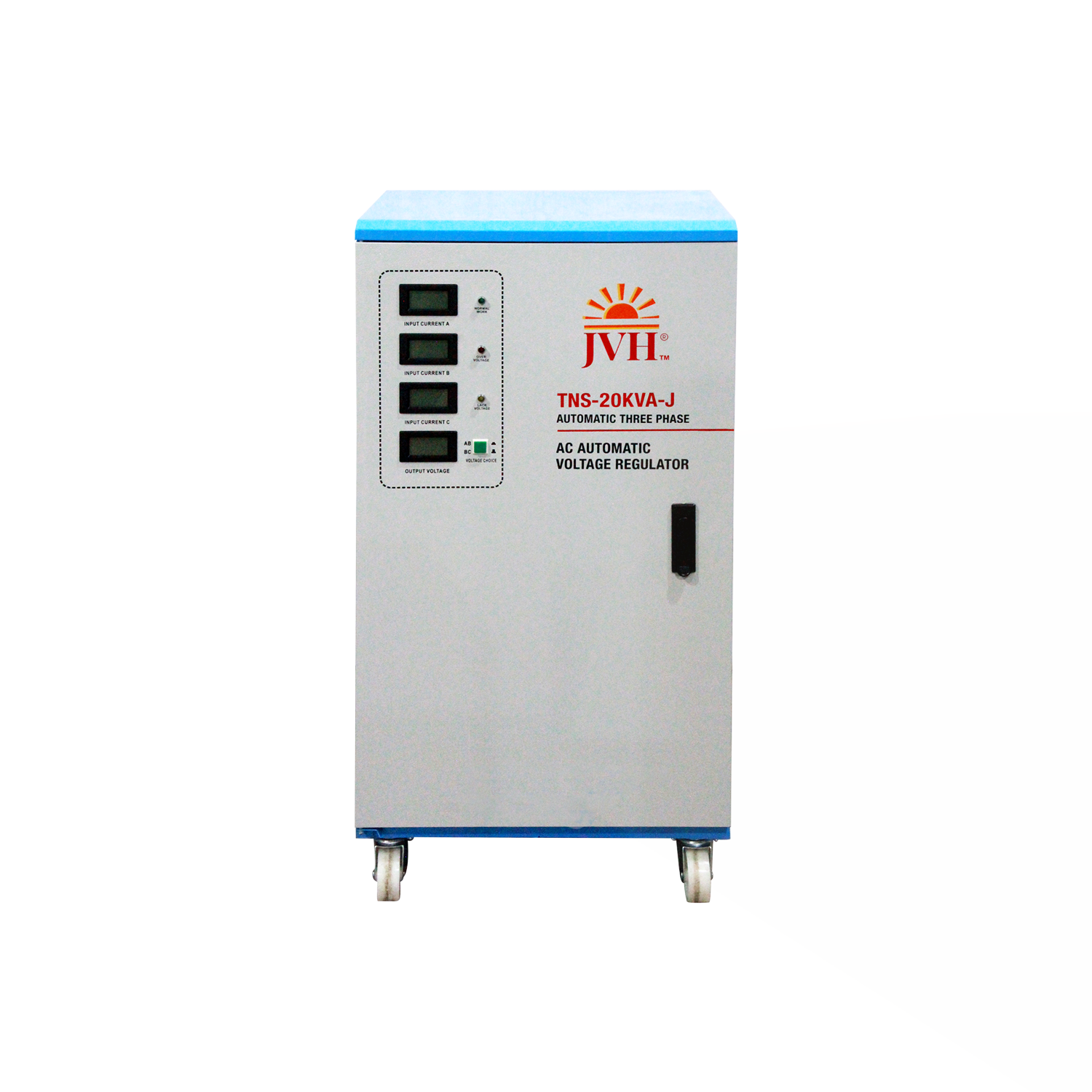

The AUTOMATIC VOLTAGE REGULATOR TNS-20KVA-J is a tri-phase (three-phase) voltage stabilizer with a 20,000W (20kVA) capacity, designed for industrial, commercial, and heavy-duty applications. With a broad input voltage range of 220V to 460V, it ensures stable and consistent output, protecting equipment from voltage fluctuations. The By-Pass Switch, Digital Display, and ELCB (Earth Leakage Circuit Breaker) provide enhanced safety, performance, and user convenience.

Technical Specifications:

• Type: Tri-Phase Voltage Stabilizer
• Capacity: 20,000W (20kVA)
• Input Voltage Range: 220V – 460V
• Output Voltage: 380V ± 3%
• Frequency: 60Hz
• Power-On Delay: 5 – 8 seconds to prevent sudden power surges upon power restoration
• Main Breaker: 100 Amp for overload and short circuit protection
• Digital Display: Real-time monitoring of input and output voltage
• ELCB Breaker (Earth Leakage Circuit Breaker): Detects and disconnects power in case of leakage current, ensuring user safety
• Terminal Log: For secure electrical connections

Key Features:

1. Tri-Phase Design: Ensures stable voltage for three-phase power systems, critical for high-performance industrial equipment.
2. Wide Input Voltage Range (220V – 460V): Operates effectively in areas with significant voltage fluctuations.
3. Power-On Delay (5 – 8 Seconds): Provides added protection to connected equipment during startup.
4. By-Pass Switch: Allows continuous power supply during maintenance or regulator bypass.
5. Digital Display: Easy-to-read interface for real-time voltage monitoring and quick troubleshooting.
6. ELCB Breaker (Earth Leakage Circuit Breaker): Protects against electric shocks and leakage currents for enhanced safety.

Attributes and Performance:

• Stable Voltage Output: Delivers consistent 380V output, ensuring optimal performance for connected equipment.
• High Efficiency: Reduces power loss and improves overall system performance.
• Durable and Reliable: Built to withstand heavy loads and harsh operating conditions.
• Quick Voltage Correction: Fast response to voltage fluctuations, maintaining a steady output.
• 100-Amp Main Breaker: Protects against high current loads and short circuits.

Safety and Protection:

1. Over-Voltage and Under-Voltage Protection: Automatically disconnects power in case of extreme voltage conditions to prevent equipment damage.
2. Overload Protection: Prevents overheating and equipment damage from excessive loads.
3. ELCB Protection: Detects and cuts off power during leakage current, ensuring user safety.
4. Short Circuit Protection: Immediate shutdown in case of short circuits for maximum protection.
5. By-Pass Functionality: Ensures continuous power supply during maintenance or regulator failure.

Benefits:

1. Protects Sensitive Equipment: Reduces damage risks by maintaining consistent voltage, increasing equipment lifespan.
2. Energy Efficient: Optimized design minimizes power consumption and operating costs.
3. Versatile Application: Suitable for industrial, commercial, and heavy-duty residential systems.
4. Enhanced Safety: Comprehensive protection features safeguard both equipment and users.
5. Continuous Operation: Built for 24/7 performance without overheating or performance loss.
6. User-Friendly: The digital display and intuitive controls make monitoring and maintenance simple.

Why Choose AUTOMATIC VOLTAGE REGULATOR TNS-20KVA-J (JVH AVR 380V with By-Pass and ELCB)?

• High-Capacity Performance: Perfect for demanding industrial and commercial environments.
• Reliable Tri-Phase Stability: Ensures uninterrupted power for critical equipment.
• Comprehensive Safety Features: Overload, short circuit, and ELCB protection for maximum safety.
• Durability and Efficiency: Designed for long-term use in challenging environments.
• Real-Time Monitoring: Easily monitor voltage fluctuations and system status with the digital display.
• Maintenance Flexibility: By-pass functionality ensures uninterrupted power flow during repairs or servicing.
