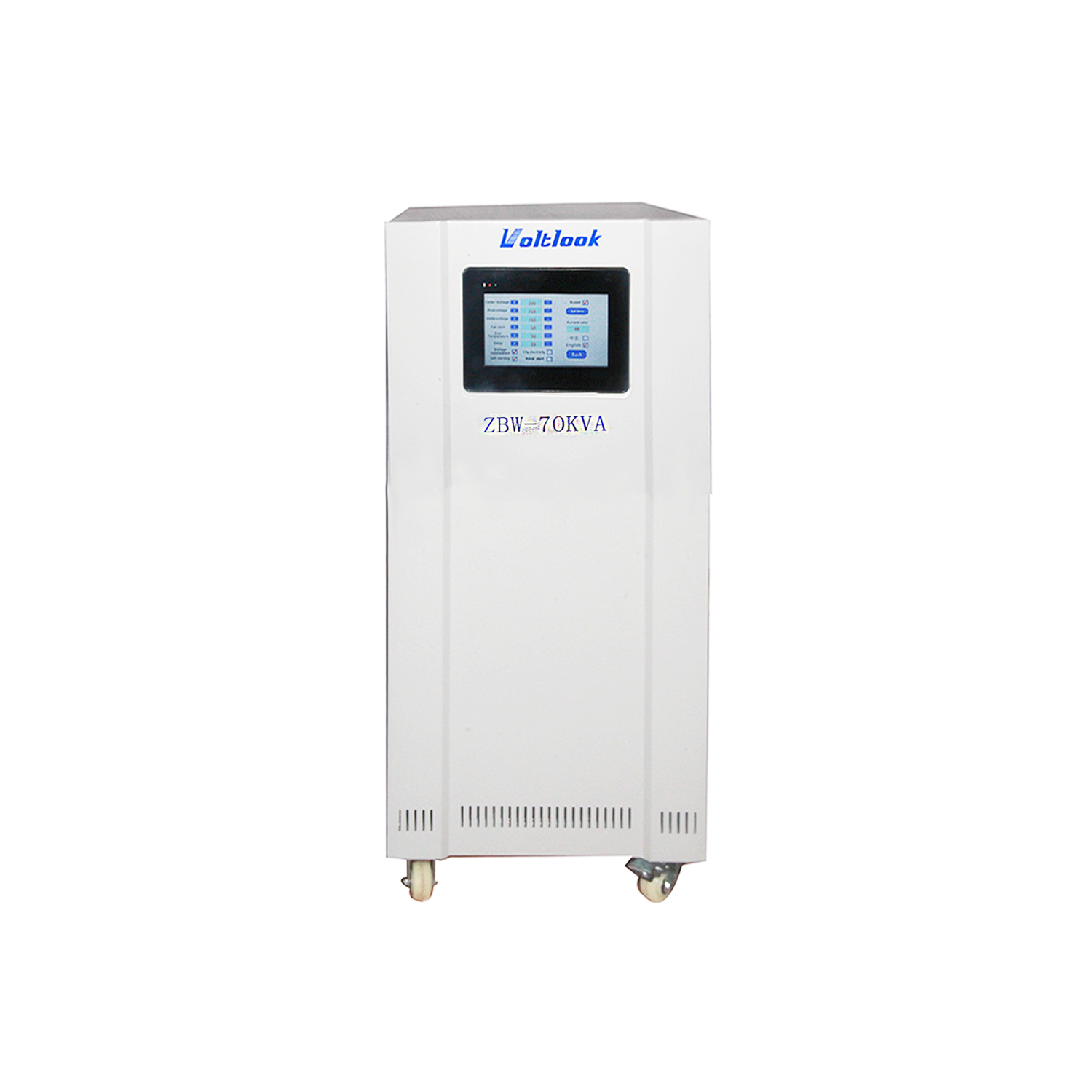

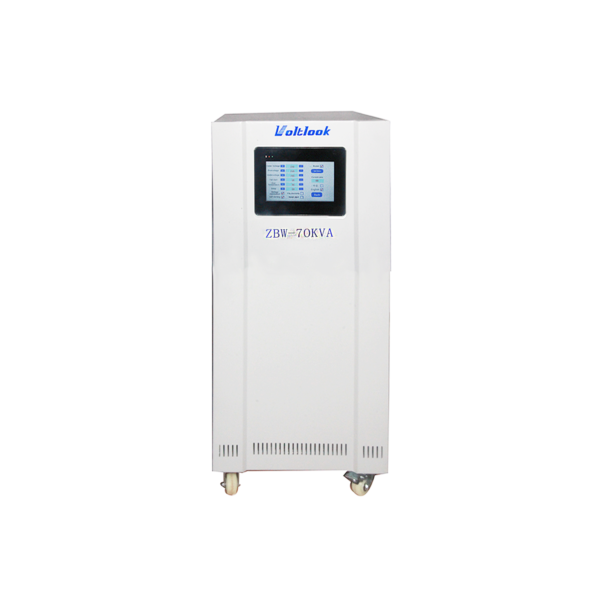

The 70,000VA Automatic Voltage Regulator (Electronic Relay Type) is built to deliver consistent voltage output and advanced protection for critical electrical systems. Ideal for both commercial and industrial applications, this unit features a digital touch screen interface and relay-type electronic regulation, ensuring stable performance and user-friendly operation.

With an input range of 154V to 286V (Line to Neutral) and a regulated 220V output, it effectively protects sensitive equipment from voltage fluctuations, power surges, and other electrical disturbances. It includes a 160A MCCB with shut trip relay and 80A fuse for added safety.

• Capacity: 70,000VA (70KVA)
• Type: Electronic Regulator (Relay Type)
• Control Panel: Digital Touch Screen
• Input Voltage (L–N): 154V – 286V
• Output Voltage (L–N): 220V AC
• Frequency: 60Hz
  • Protection Features:
  • 160A MCCB with Shut Trip Relay
  • 80A Fuse
  • High & Low Voltage Protection
  • Power Surge Protection

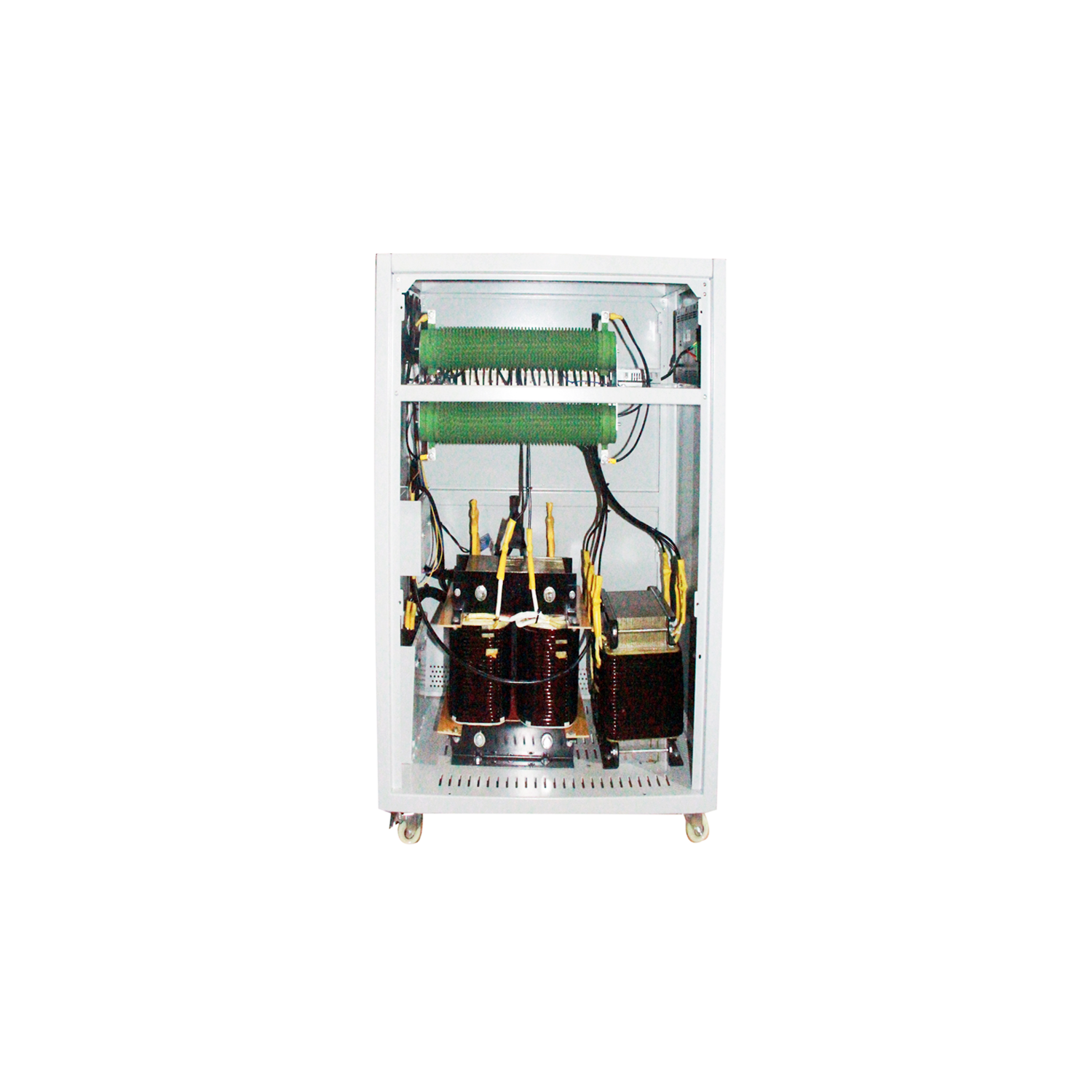

• Main Transformer: Input/Output Dry-Type Transformer
• Power-On Delay: Included
• By-Pass Settings: Manual Switching Supported

This AVR offers reliable voltage regulation with full protective features, making it a solid choice for facilities requiring stable and secure power delivery. Let me know if you’d like a version with graphics or formatted for a catalog.
