Description

Full Product Specifications:

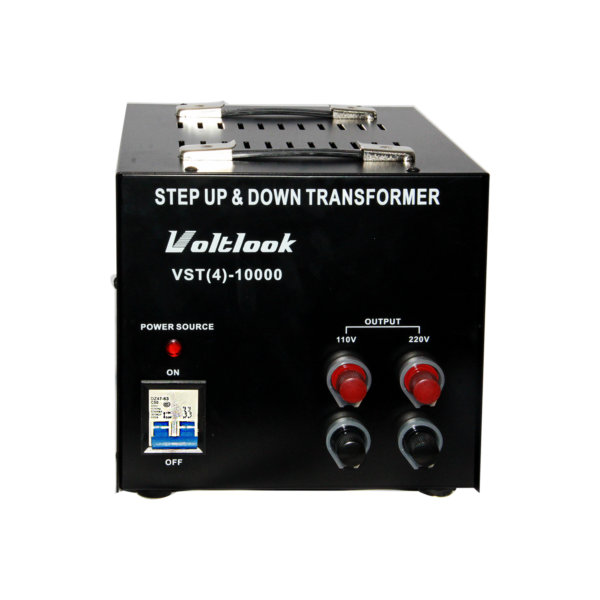

• Product Name: Voltlook 4-In-2-Out Step Up / Step Down Transformer

• Power Rating: 10,000 Watts (10kW)

• Input Voltage Options (Selectable): 110V / 200V / 220V / 240V AC

• Output Voltage: Dual output — 110V AC and 220V AC

• Frequency Range: 50Hz to 60Hz

• Protection: Built-in 50A Circuit Breaker

• Connectivity: Terminal Block connection for secure, heavy-load installations

• Configuration: Step-up and Step-down capability in one device

• Type: Toroidal isolation transformer (assumed for efficiency and safety — verify with manufacturer)

Key Features:

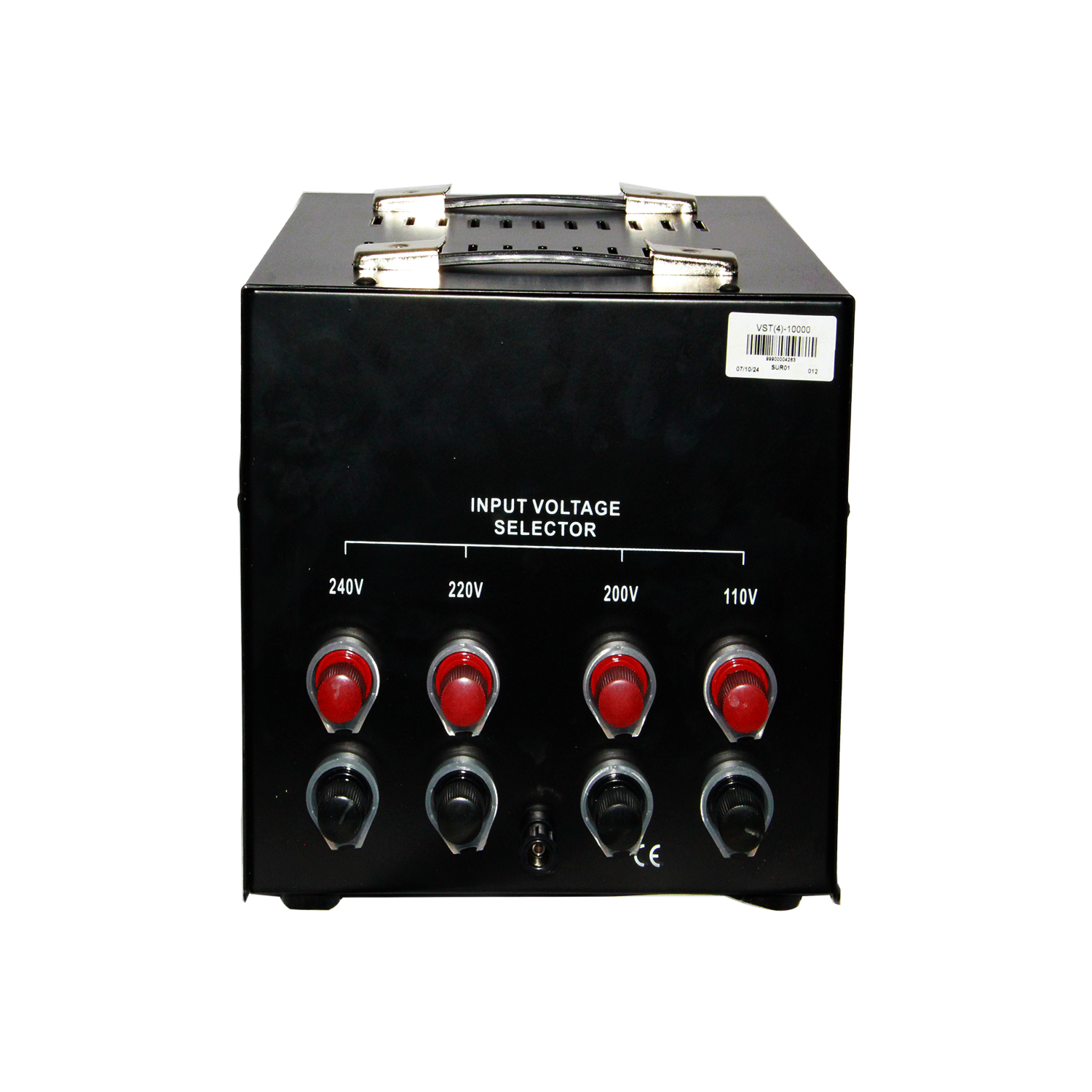

• 4 Input Voltage Selection: Easily adaptable to regional voltage standards or site-specific requirements.

• 2 Output Options: Delivers both 110V and 220V simultaneously — ideal for dual-voltage applications.

• Built-in 50A Breaker: Provides overcurrent and short-circuit protection without the need for external breakers.

• Step-Up & Step-Down Functionality: Transforms voltages up (e.g., 110V to 220V) or down (e.g., 220V to 110V) with one unit.

• Terminal Block Design: Ensures secure, high-current connections for industrial or heavy-duty use.

Performance:

• Power Output: Capable of handling up to 10,000W continuous load — suitable for high-wattage equipment like HVAC systems, industrial tools, or large appliances.

• Efficiency: Typically ≥ 90% (manufacturer specifics may vary).

• Noise Level: Low operating noise due to enclosed construction and quality winding.

• Cooling: Passive or fan-assisted depending on enclosure (check specific model).

 Safety & Compliance:

• Circuit Breaker: Integrated 50A breaker protects users and equipment.

• Insulation: High-grade insulation ensures long operational life and thermal stability.

• Grounding: Ground terminal available for user safety and compliance with electrical codes.

• Housing: Heavy-duty, grounded metal casing for added electrical shielding and durability.

Benefits of Choosing the Voltlook 10kW Transformer:

• Versatile: Ideal for import/export use, international appliances, workshops, and locations with mixed-voltage requirements.

•  Time & Space-Saving: One unit does both step-up and step-down conversions.

• Safe: Built-in overload protection and terminal connections minimize risk.

•  Economical: High power capacity in a single device eliminates the need for multiple transformers.

•  Easy Setup: Selector switch and terminal blocks make installation straightforward.

Why Choose Voltlook?

The Voltlook Transformer is a top-tier solution for anyone needing a powerful, flexible, and reliable step-up/step-down transformer. Its dual output, multi-voltage input options, and integrated safety features make it especially suited for international power conversion, industrial facilities, or users with mixed-voltage equipment. With a 10,000W capacity, it delivers professional-grade performance in a user-friendly package.
